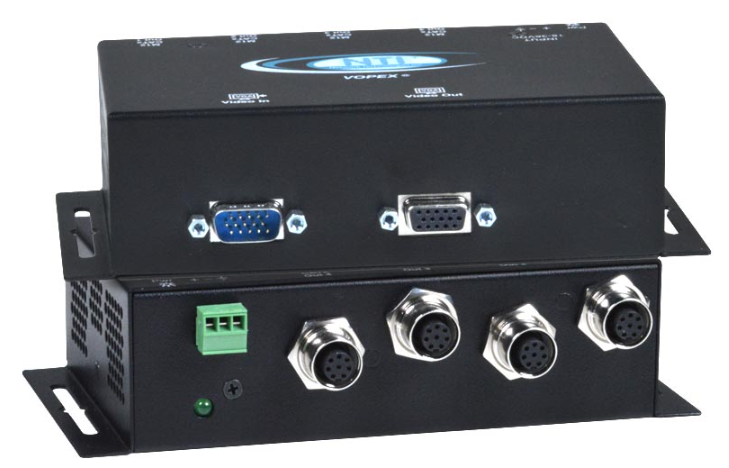

Industrial VGA Splitter/Extender via CAT5 with M12 Connectors

Industrial VGA Splitter/Extender via CAT5 with M12 Connectors

Model No : VOPEX-M12V-4

Weight In KG :1.36078

Weight In LB :3



Request for Price
  • Description
  • Sepcification
  • Download
  • Buy

INTRODUCTION

      • The  Industrial VGA Video Splitter/Extender simultaneously broadcasts high-resolution video from one computer to 4, 8, or 16 remote monitors located up to 600 feet (183 meters) away using CAT5/5e/6 cable with M12 connectors. The robust M12 connector system is ideal for rail transportation and harsh industrial environments where reliable connections are required.
      • VGA video splitter/extender system has two components: the VOPEX-M12V-x VGA broadcast unit, which connects to the host computer and also supplies video to a local monitor, and an XTENDEX® ST-M12V-R-600 remote unit for each remote monitor. The units are interconnected by CAT5/5e/6 cable terminated with M12 connectors.
      • Supports resolutions up to 1920x1440.
      • Easily expandable. Add remote units as you add monitors.
      • Optional audio can be broadcast to self-powered stereo speakers at the local unit and each remote location.
      • Meets the electrostatic discharge (ESD) immunity requirements of IEC/EN 61000-4-2.
      • High quality rugged steel construction with durable powder coat finish.
      • M12 connectors resist vibration and provide reliable connectivity in harsh environmental conditions.
      • Integrated mounting brackets for easy surface/wall mounting.
      • Ideal for digital signage, passenger information systems on mass transit, train stations, industrial environments, airports, and other applications that require multiple displays with reliable robust connections.

TECHNICAL


Local Unit

Video Input

        • Supports a computer with VGA video.
        • Male 15-pin HD connector.
        • Input frequency ranges:
        • Horizontal: 15 to 130 kHz.
        • Vertical: 30 to 150 Hz
        • Supports Separate and Composite TTL level sync and Sync on Green.
        • Input impedance: 75 Ohms.
        • Maximum input levels: 1.45 p-p.
        • Video is DC coupled.

    Video Output

        • Female 8-pin A-Coded M12 connectors for CAT5/5e/6 cable to remote units.
        • Female 15-pin HD connector for local monitor.
        • Crisp and clear 1920x1440 video resolution.
        • Output impedance: 75 Ohms.
        • Maximum output level: 1.45Vp-p
    Optional Audio
          • Terminal block for stereo audio connections.
          • Frequency response: 20 Hz to 20 kHz, ±1dB.
          • Signal-to-Noise Ratio (SNR): 76 dBA.
          • Total Harmonic Distortion and Noise (THD+N): 0.017%
          • Stereo Crosstalk: -70 dB.
          • Input impedance: 10k Ohms.
          • Line level output; supports multimedia speakers.
          • CD quality audio output.
          • Maximum I/O levels for audio: 3.1 Vp-p (line level).

      Power

      18~36 VDC via 3-pole detachable screw terminal.

      Power consumption: <5 W

      Cables

      3-foot (0.91-meter) VGA cable included.

      Use CAT5, CAT5e or CAT6 UTP straight through cable for TIA/EIA-568B wiring terminated with 8-pin male M12 connectors (not included).

        Use M12-8PWTP-M-FA to terminate both ends of CAT5/5e/6 cable.

        Dimensions

        4-port WxDxH (in): 5.63x3.46x1.71 (143x88x43 mm)

        8-port WxDxH (in): 5.63x3.46x3.00 (143x88x76 mm)

        16-port WxDxH (in): 11x3.46x3.00 (279x88x76 mm)

        Environmental

        Operating temperature: -4 to 158°F (-20 to 70°C)

        Storage temperature: -40 to 185°F (-40 to 85°C)

        Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.

        Regulatory Approval

        CE, RoHS

        EN51055, EN50121-3-2

        Warranty

        2 Years



        MTBF

        NTI Part#

        MTBF (hours)

        VOPEX-M12V-4

        593,095

        VOPEX-M12V-8

        366,496

        VOPEX-M12V-16

        120,049

        VOPEX-M12VA-4

        504,094

        VOPEX-M12VA-8

        327,766

        VOPEX-M12VA-16

        94,491




        Remote Unit

        Video Output

              • Female 15-pin HD connector.
              • Supports resolutions up to 1920x1440.
              • When using CAT6 cable, some degradation may be experienced, depending on the construction of the cable.
              • Output impedance: 75 Ohms.
              • Maximum output level for video: 1.45Vp-p.
              • Video quality adjustment for different lengths of CAT5/5e/6 cable done manually.
          Optional Audio
                • Terminal block for stereo audio connections.
                • Frequency response: 20 Hz to 20 kHz, ±1dB.
                • Signal-to-Noise Ratio (SNR): 76 dBA.
                • Total Harmonic Distortion and Noise (THD+N): 0.017%.
                • Stereo crosstalk: -70 dB.
                • Line level output; supports multimedia speakers.
                • CD quality audio output.
                • Maximum output levels: 3.1Vp-p (line level).

            Power

            18~36 VDC via 3-pole detachable screw terminal.

            Power consumption: <5 W

            Cables

            3-foot (0.91-meter) VGA cable included.

            Use CAT5, CAT5e or CAT6 UTP straight through cable for TIA/EIA-568B wiring terminated with 8-pin male M12 connectors (not included).

              Use M12-8PWTP-M-FA to terminate both ends of CAT5/5e/6 cable.

              Dimensions

                WxDxH (in): 3.48x3.08x1.45 (88x78x37 mm)

              Environmental

              Operating temperature: -4 to 158°F (-20 to 70°C)

              Storage temperature: -40 to 185°F (-40 to 85°C)

              Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.

              Regulatory Approval

              CE, RoHS

              EN51055, EN50121-3-2

              Warranty

              2 Years

              MTBF

              NTI Part#

              MTBF (hours)

              ST-M12V-R-600

              582,822

              ST-M12VA-R-600

              517,478



              Distances & Resolutions for CAT5/CAT5e/6 Cables

              Cable

              Distance

              Maximum Resolution

              CAT5/CAT5e (UTP)

              600 ft (183 m)

              1024x768 at 60 Hz

              400 ft (122 m)

              1280x1024 at 60 Hz

              300 ft (91 m)

              1600x1200 at 60 Hz

              100 ft (30 m)

              1920x1440 at 60 Hz

              CAT5/CAT5e (STP), CAT6 (UTP)

              300 ft (91 m)

              1024x768 at 60 Hz

              200 ft (61 m)

              1280x1024 at 60 Hz

              100 ft (30 m)

              1920x1440 at 60 Hz



              Distances & Resolutions for CAT5 EXANE cable

              Distance

              Maximum Resolution

              200 ft (61 m)

              1280x1024 at 60 Hz

              100 ft (30 m)

              1920x1440 at 60 Hz

              50 ft (15 m)

              1920x1440 at 60 Hz

              VOPEX-M12V-4 Industrial VGA Splitter/Extender via CAT5 with M12 Connectors with 4 Ports
              VOPEX-M12V-8 Industrial VGA Splitter/Extender via CAT5 with M12 Connectors with 8 Ports
              VOPEX-M12V-16 Industrial VGA Splitter/Extender via CAT5 with M12 Connectors with 16 Ports
              VOPEX-M12VA-4 Industrial VGA Splitter/Extender with Stereo Audio via CAT5 with M12 Connectors with 4 Ports
              VOPEX-M12VA-8 Industrial VGA Splitter/Extender with Stereo Audio via CAT5 with M12 Connectors with 8 Ports
              VOPEX-M12VA-16 Industrial VGA Splitter/Extender with Stereo Audio via CAT5 with M12 Connectors with 16 Ports
              ST-M12V-R-600 Industrial CAT5 VGA Video Extenders, Remote Units
              ST-M12VA-R-600 Industrial CAT5 VGA Video Extenders, Remote Units with Audio
              M12-8PWTP-M-FA A-Coded
