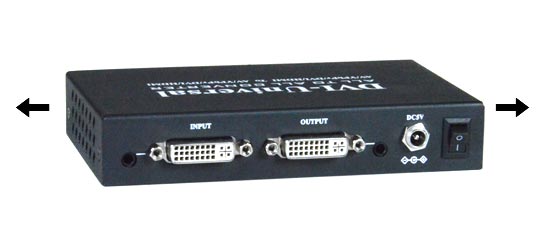

Universal Video Converter Scaler

Universal Video Converter Scaler

Model No : UNV-DVI-CNVTR

Weight In KG :0.63503

Weight In LB :1.4



Request for Price
  • Description
  • Sepcification
  • Download
  • Buy

INTRODUCTION

        • The Universal Video Converter Scaler supports analog and digital conversion and scaling without loss of quality - HDMI/DVI/VGA/Component/Composite video. The converter generates the compatible analog /digital conversion signals to make the connection between the input and the output work, and upscales the resolution to 1920x1200 (WUXGA) or 1080p.
        • Connect analog and digital sources to the converter, and display images on a digital or analog monitor.
        • Supports HDMI/DVI/VGA/Component/Composite video sources and displays.
        • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200.
        • Automatically detects input resolution.
        • Output resolution can be selected from the DIP switch on the bottom of the converter.
        • OSD menu for configuring picture mode, color temperature, screen position (with VGA input), zoom (for AV composite output).
        • Convert DVI/VGA/Component/Composite video with audio to HDMI with integrated audio.


    TECHNICAL

    Connectors

          • Female DVI-I input/output connectors.
          • Use the included adapters to connect an HDMI/VGA/Component/Composite video source and display.
          • 3.5mm stereo audio jacks for input/output.
      Video Resolutions
          • HDMI/DVI/VGA output: Supports HDTV resolutions to 1080p at 60Hz and computer resolutions to 1920x1200 at 60Hz.
          • YPbPr Component Video output: Supports HDTV resolutions to 1080p at 60Hz
          • AV Composite Video output: Supports NTSC/PAL

      Power

      Input: 110 or 220 VAC at 50 or 60 Hz via AC adapter. (US AC adapter included.)

        Optional universal power plug adapters available (not included).

        Output: 5VDC, 1.5A

        Power consumption: 3W

        Dimensions

        WxDxH (in): 5.62x3.26x1.02 (143x83x26 mm).

        Environmental

        Operating temperature: 32 to 104°F (0 to 40°C)

        Storage temperature: -4 to 140°F (-20 to 60°C)

        Package Includes


            • Universal Video Converter Scaler
            • Male DVI to female VGA adapter
            • Male DVI to female HDMI adapter
            • Male DVI to female 3-RCA adapter
            • US AC Power adapter
            • User manual

        Warranty

        2 Years
