Console Serial Port Switch

Console Serial Port Switch

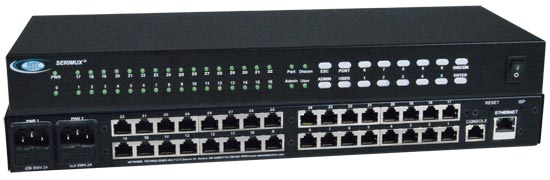

Model No : SERIMUX-CS-16

Weight In KG :3.17514

Weight In LB :7



Request for Price
  • Description
  • Sepcification
  • Download
  • Buy

INTRODUCTION

            • The Console Switch gives IT managers the ability to cost effectively manage serial devices, including servers, switches, routers, and telecom gear. The switch can be controlled via an ASCII terminal with menu-driven integrated software, the front panel keypad, or optional Ethernet interface.
            • Eliminates the need to connect each device to an ASCII terminal or PC.
            • Connect up to 32 devices with different baud rates, parity, and character length. Each switch also has one RJ45 connector for a local terminal.
            • Provides out-of-band access to network devices (servers, routers, network switches, and any other network devices allowing console operation using RS232).
            • Power cycle without halting SUN host computer.
            • No inadvertent "break" signals are generated to cause unintentional rebooting of SUN computers.
            • Dual power option creates a redundant power system protecting the console switch from any power failure issues.
            • High quality, rugged steel construction with durable powder coat finish.
            • Command Line Interface via Telnet for advanced management functions.
            • Connects to console serial ports using standard CAT5/5e/6 cables and cable adapters.
            • Maximum cable length is 100 feet (30 meters).
            • Two operator levels (administrator and user).
            • Switching is simplified with programmable device names and menu-driven device selection.
            • All configuration parameters are stored in non-volatile EEPROM.
            • Built-in data buffers save the most recent RS232 console output from each connected device, which simplifies troubleshooting failures.
            • Local commands can be directed via VT52, VT100, ANSI serial console, a PC with a terminal emulation program, or any compliant terminal.
            • Gain access to servers without interrupting service to end-users; maintain optimal up-time.
            • Manage server farms or data centers via serial ports and standard external modems or through optional Ethernet interface using Telnet or Web interface.
            • 1RU rackmount case is standard

        TECHNICAL

        Compatibility

        Supports most devices with an RS232 serial port.

        Serial Interface

              • 4, 8, 16, 24 or 32 RJ45 EIA-232 serial port connectors.
              • One RJ45 EIA-232 console port connector.
              • Flow control: Hardware (RTS/CTS), Software (XON, XOFF), both or none.
              • Signals: TXD, RXD, DSR, DTR, CTS, RTS, DCD
              • Data transfer rate: up to 115.2K baud between two ports.
              • Two ports can be at different baud rates.

          Network Interface (Optional)

          10/100 BaseT Ethernet port with RJ45 connector.

          Supports static and dynamic IP addresses.

          Power

          Input Voltage: AC 100 - 240V, 50 - 60 Hz

          Optional dual power available on all models.

          Adapters
              • Four cable adapters are included with the SERIMUX.
              • DB-25F to RJ45 console adapter.
              • DB-9F to RJ45 console adapter.
              • DB-25M to RJ45 console adapter.
              • DB-25M to RJ45 modem adapter.
              • Additonal adapters available.
              • Adapter pinout diagrams.

          Protocols (For Optional Ethernet Control)

          HTTP, HTTPS, ICMP, DHCP.

          TCP/IP, SSL, Telnet.

          Environmental

          Operating temperature: 32 - 100°F (0 - 38°C).

          Storage temperature: -20 - 140°F (-30 - 60°C).

          Operating and Storage Relative Humidity: 17 - 90% non-condensing RH.

          Regulatory Approval

          CE, RoHS

          Warranty

          2 Years

          Power Consumption

          Model

          Power (W)

          Model

          Power (W)

          4-port

          5

          24-port

          10

          8-port

          5

          32-port

          10

          16-port

          10


          MTBF

          NTI Part #

          MTBF (hrs)

          NTI Part #

          MTBF (hrs)

          SERIMUX-CS-4

          57,847

          SERIMUX-CS-8

          54,652

          SERIMUX-CS-8E

          48,506

          SERIMUX-CS-16

          53,238

          SERIMUX-CS-16E

          47,383

          SERIMUX-CS-16EDP

          47,280

          SERIMUX-CS-24E

          45,045

          SERIMUX-CS-24EDP

          44,959

          SERIMUX-CS-32EDP

          43,304

          Dimensions

          Console Serial Port Switches (without supplied rackmount kit)

          NTI Part #

          Desktop Size
          WxDxH (in.)

          NTI Part #

          Desktop Size
          WxDxH (in.)

          SERIMUX-CS-4

          9x6x1.75

          SERIMUX-CS-8

          15.3x6x1.75

          SERIMUX-CS-8E

          15.3x6x1.75

          SERIMUX-CS-16

          15.3x6x1.75

          SERIMUX-CS-16E

          15.3x6x1.75

          SERIMUX-CS-16EDP

          16.2x6x1.75

          SERIMUX-CS-24E

          15.3x6x1.75

          SERIMUX-CS-24EDP

          16.2x6x1.75

          SERIMUX-CS-32EDP

          16.2x6x1.75

            DB25M-RJ45F-C Adapt a modem to the SERIMUX
            DB9F-RJ45F Adapt DB-9M serial ports to the SERIMUX
            DB25M-RJ45F-T Adapt DB-25F serial ports to the SERIMUX
            DB25F-RJ45F Adapt DB-25M serial ports to the SERIMUX
            RJ45MF-RS232-CO Adapter to connect SUN/Cisco RJ45 serial ports to the SERIMUX
            SERIMUX-CS-8 8-port console serial port switch
            SERIMUX-CS-16 16-port console serial port switch
