USB C Multiport Video Adapter w/ HDMI, VGA, Mini DisplayPort or DVI - USB Type C Monitor Adapter to HDMI 2.0 or mDP 1.2 (4K 60Hz) - VGA or DVI (1080p) - Space Gray Aluminum

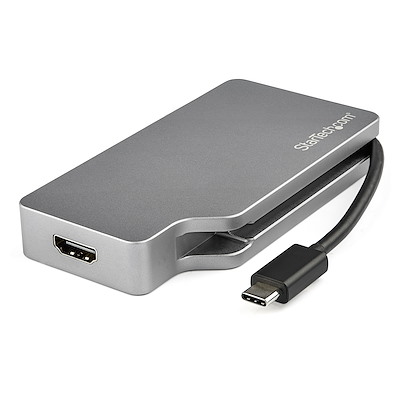

This USB-C multiport video adapter offers a
portable solution for connecting your USB Type-C laptop to a VGA, DVI, HDMI® or
Mini DisplayPort (mDP) display.
All-in-One Video Connectivity with Travel in Mind
Avoid the hassle of carrying different
adapters, with a 4-in-1 USB-C monitor adapter. With VGA, DVI, HDMI and mDP
output, you can connect your laptop to any display using this multiport
adapter.
The adapter features a magnetic retainer that
guides the breakout cable into place for quick, secure portability. With a
durable aluminum enclosure, the adapter can withstand being carried in your
travel bag.
Ultra HD 4K 60Hz Resolution
The HDMI and mDP outputs on this USB-C video
adapter support UHD resolutions up to 4K 60Hz, while the VGA and DVI outputs
support HD resolutions up to 1920 x 1200.
Stylish Connectivity for Your MacBook, MacBook Pro, or
Any Laptop
The USB-C adapter has a Space Gray housing
and built-in USB-C cable designed to match your Space Gray MacBook, or MacBook
Pro. The adapter is compatible with USB-C DP Alt Mode devices.
The adapter is also available with 4K 30Hz
HDMI resolution support, in three colors: Space Gray (CDPVDHDMDPSG), Rose Gold
(CDPVDHDMDPRG) and Silver (CDPVGDVHDMDP), so you can choose an adapter that
matches your laptop or your color preference.
CDPVDHDMDP2G is backed by a StarTech.com
3-year warranty and free lifetime technical support.
Technical:
Warranty Information
3 Years
Connector(s)
Connector A : 1 - USB-C (24 pin) DisplayPort Alt Mode
Connector B : 1 - Mini-DisplayPort (20 pin)
1 - VGA (15 pin, High Density D-Sub)
1 - DVI-I (29 pin)
1 - HDMI (19 pin)
Environmental
Operating Temperature : 0°C to 45°C (32°F to 113°F)
Storage Temperature : -10°C to 70°C (14°F to 158°F)
Humidity : Storage: 5% ~ 90 % RH (no condensation)
Operating: 10% ~ 85 % RH (no condensation)
Hardware
Active or Passive Adapter : Active
AV Input : USB-C
AV Output : HDMI - 1.4
Mini DisplayPort - 1.2
DVI-I (Digital Only) - Single-Link
VGA
Chipset ID : Cypress - CYPD3120
Parade - PS8348
Parade - PS8617
Parade - PS8338
Parade - PS171
Parade - PS176
Packaging Information
Shipping (Package) Weight : 0.1 kg [0.3 lb]
Package Length : 55 mm [2.2 in]
Package Width : 10.5 cm [4.1 in]
Package Height : 16 mm [0.6 in]
Performance
Audio Specifications : HDMI - 7.1 Channel Audio
DVI - No Audio Support
VGA - No Audio Support
Mini DisplayPort - 5.1 Channel Audio
Video Revision : HDMI 2.0
DisplayPort 1.2
Maximum Cable Distance To Display : 15.2 m [49.9 ft]
Maximum Analog Resolutions : 1920 x 1200 @ 60Hz
Maximum Digital Resolutions : 4096 X 2160 @ 24Hz or 3840 X 2160 @ 60Hz (HDMI)
4096 X 2160 @ 60Hz (mDP)
Supported Resolutions : Maximum HDMI output: 4096 X 2160 @ 24Hz or 3840 X 2160 @ 60Hz
Maximum mDP output: 4096 X 2160 @ 60Hz
Maximum DVI and VGA output: 1920 x 1200 @ 60Hz
Lower resolutions and refresh rates may also be supported
Wide Screen Supported : Yes
MTBF : 800,703 hours
Physical Characteristics
Color : Space Gray
Material : Aluminum
Cable Length : 115 mm [4.5 in]
Product Length : 17.5 cm [6.9 in]
Product Width : 14.2 cm [5.6 in]
Product Height : 3 cm [1.2 in]
Weight of Product : 185 g [6.5 oz]
Special Notes / Requirements
Note
Only one video output is supported on the video adapter at a time, if multiple connections are made, only one of the outputs will function
Maximum Cable Distance to Display refers to digital video. VGA distance capabilities are dependent upon the quality of your cabling
The VGA output does not work with M1, M1 PRO, and M1 MAX MacBook hosts
