Weight In KG :0.211
Weight In LB :0.46517

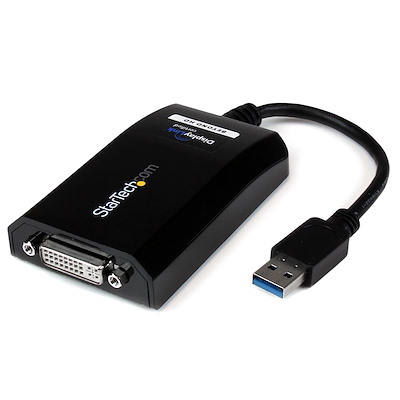

USB 3.0 to DVI / VGA Adapter
USB 3.0 to DVI / VGA Adapter – 2048x1152
Model No : USB32DVIPRO
The USB32DVIPRO USB 3.0 to DVI Adapter turns an
available USB 3.0 port into a DVI output, with high resolution 2048x1152 video
support - a convenient external video solution that makes it easy to add
multi-monitor capability to a USB 3.0-enabled desktop or laptop computer
(optimal performance from USB 3.0, backward compatible with USB 2.0). Leveraging the high-bandwidth (5 Gbps) SuperSpeed
USB 3.0 interface, the adapter functions as a external graphics card to deliver
smooth, high-resolution content to your DVI or VGA-capable display (DVI to VGA
Adapter included). The adapter can be used to mirror your primary desktop,
showing the same image on each display, or to extend your desktop to double
your workspace and increase your productivity. Backed by a StarTech.com 2-year warranty and free
lifetime technical support.
INTRODUCTION
Recommended System Requirements:CPU: Quad Core 2.4GHz or Higher (i5 recommended)RAM: 4GB or higher
TECHNICAL
TECHNICAL
| Warranty Information | 2 Years |
| Connector(s) | Connector A : 1 - USB Type-A (9 pin, 5 Gbps) Connector B : 1 - DVI-I (29 pin) |
| Environmental | Operating Temperature : 10°C to 40°C (50°F to 194°F) Storage Temperature : -10°C to 80°C (14°F to 167°F) Humidity : < 85% non-condensing |
| Hardware | AV Input : USB 3.0 AV Output : DVI Audio : Yes USB Pass-Through : Memory : 512MB Chipset ID : DisplayLink - DL-3100 |
| Packaging Information | Shipping (Package) Weight : 211 g [7,4 oz] Package Height : 30 mm [1,2 in] Package Length : 17,1 cm [6,7 in] Package Width : 14,4 cm [5,7 in] |
| Performance | Maximum Analog Resolutions : 2048x1152 Maximum Digital Resolutions : 2048x1152 Supported Resolutions : Widescreen(16/32 bit): 2048x1152, 1920x1200, 1920x1080, 1680x1050, 1366x768, 1280x800, 1280x768, 1280x720 Standard(16/32 bit): 1600x1200, 1400x1050, 1280x1024, 1024x768, 800x600, 640X480 Wide Screen Supported : Yes MTBF : 90,577 hours General Specifications : Note: If using OS X 10.8, Apple update 10.8.3 must be installed before installing DisplayLink software. 10.8.3 fixes several serious OS X bugs exposed when DisplayLink software is installed. This USB video adapter uses a DisplayLink family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a Trigger or Fresco family chipset. |
| Power | Power Source : USB-Powered |
Physical Characteristics | Color : Black Product Height : 1,6 cm [0,6 in] Weight of Product : 91 g [3,2 oz] Product Length : 78 mm [3,1 in] Product Width : 43,5 mm [1,7 in] Material : Plastic Cable Length : 152,5 mm [6,0 in] |
| Software | OS Compatibility : OS Compatibility Windows® XP (32-bit), Vista, 7, 8, 8.1, 10, 11 macOS 10.6 - 10.12, 10.14 - 10.15, 11.0, 12.0 Ubuntu 18.04, 20.04 Chrome OS™ v55+ |
| Special Notes / Requirements | System and Cable Requirements System Processor: Quad Core 2.4GHz (i5 recommended) System Memory: 4GB Note This USB video adapter uses a DisplayLink® family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, avoid using devices with different family chipsets, such as Trigger or Fresco Logic® Connect a maximum of five USB video adapters on a single computer. Support for multiple adapters will vary depending upon your system resources This USB video adapter is not intended for graphical intensive applications, such as gaming |
| What's in the Box | Included in Package : 1 - USB 3.0 to DVI Adapter 1 - DVI to VGA Adapter 1 - Driver CD 1 - Installation guide |
