Weight In KG :0.86
Weight In LB :1.89597

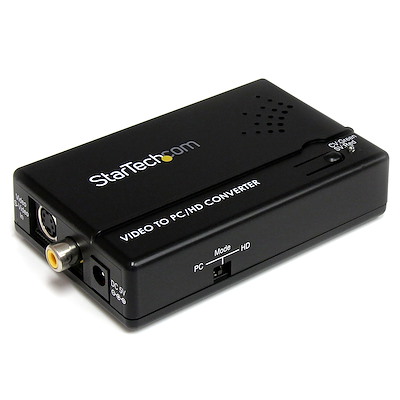

Composite and S-Video to VGA Video Scan Converter
Composite and S-Video to VGA Video Scan Converter
Model No : VID2VGATV2
INTRODUCTION Equipped with an On-Screen Display (OSD) menu and
dip switches for simple configuration and selection of your video output
settings, this compact video scaler installs quickly and easily for a true
plug-and-play experience. An integrated scaler circuit dynamically converts the
S-Video or Composite video input signal, giving you multiple output resolutions
to choose from, to ensure compatibility with your display or projector. Plus, the Component/S-Video-VGA Converter includes
a VGA to Component (RCA) breakout cable, which enables you to connect to TV
sets that are not equipped with a VGA port. Backed by a StarTech.com 2-year warranty and free
lifetime technical support.
The VID2VGATV2 Composite and S-Video to VGA Video
Scan Converter (with Scaler) provides a simple way to convert Composite or
S-Video signals to VGA (or Component RCA) output, for use with computer
monitors, projectors or HDTV sets.
TECHNICAL
TECHNICAL
| Warranty Information | 2 Years |
| Connector(s) | Connector A : 1 - Composite Video (1 x RCA) 1 - S-Video (4 pin, Mini-DIN) Connector B : 1 - VGA (15 pin, High Density D-Sub) |
| Environmental | Operating Temperature : 0°C to 40°C (32°F to 104°F) Storage Temperature : 0°C to 60°C (32°F to 140°F) Humidity : 0~60% RH |
| Hardware | Active or Passive Adapter : Active AV Input : S-Video Composite AV Output : VGA Component Audio : No |
| Indicators | LED Indicators : 1 - Composite (Yellow) / S-Video (Red) input indicator |
| Packaging Information | Package Height : 61 mm [2,4 in] Package Length : 11,8 cm [4,6 in] Shipping (Package) Weight : 459 g [16,2 oz] Package Width : 20,9 cm [8,2 in] |
| Performance | Supported Resolutions : PC: 1600x1200, 1280x1024, 1024x768 HDTV: 480p (50/60Hz), 576p (50Hz), 720p (50/60Hz), 1080p (50/60Hz) Signal Levels : Input Video @ 1V p-p, 75 ohm Y @ 1 V p-p, 75 ohm Color @ 0.7V p-p, 75 ohm |
| Physical Characteristics | Weight of Product : 86 g [3,0 oz] Color : Black Material : Plastic Product Length : 11,2 cm [4,4 in] Product Width : 64 mm [2,5 in] Product Height : 2,6 cm [1,0 in] |
| Power | Power Source : AC Adapter Included Output Voltage : 5 DC Output Current : 1A Power Consumption (In Watts) : 2.5 |
| What's in the Box | Included in Package : 1 - Video Converter/Scaler 1 - VGA to Component (RCA) breakout cable 1 - Universal Power Adapter 1 - Instruction Manual |
