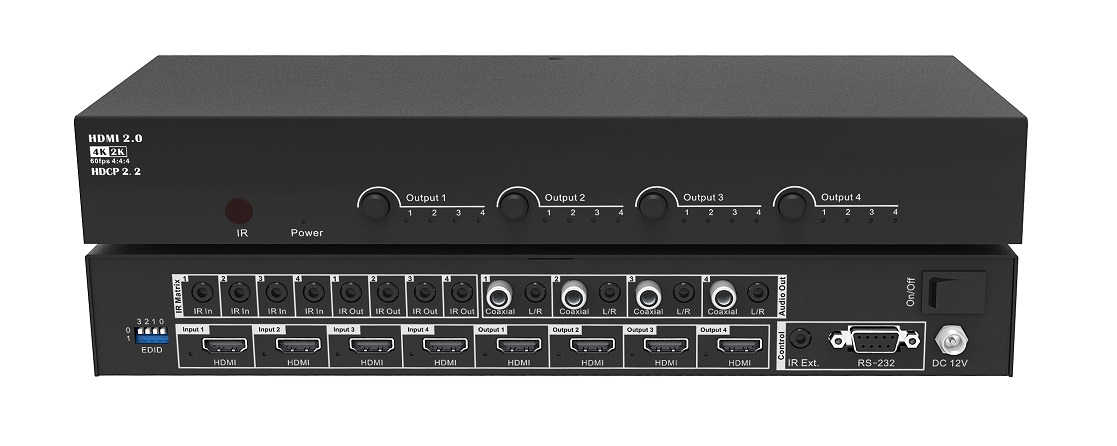

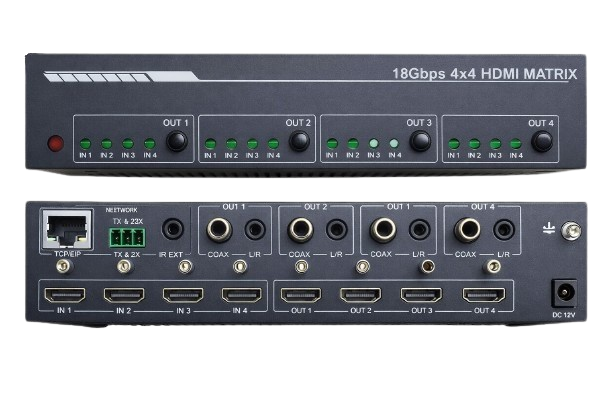

4K 18G HDMI MATRIX SWITCH 4 X 4

4K 18G HDMI MATRIX SWITCH 4 X 4

Model No : PA-HMX-0404

Weight In KG :0.792

Weight In LB :1.74606



Request for Price
  • Description
  • Sepcification
  • Download
  • Buy

INTRODUCTION

      • This high-performance HDMI Matrix Switcher can switch any of these four HDMI 2.0 sources to four HDMI 2.0 displays. Each input and output support up to 4K60 444 resolution and HDCP 2.2.The outputs can be individually scaled for 1080p.De-embedded audio as analogue L/R and coaxial is available for both outputs.
      • The ARC function can return display device audio to coaxial port output only. Advanced EDID management is supported. With its 18Gbps bandwidth and the additional features with latest HDMI standards. This switcher can be controlled from the front panel, RS-232, IR remote, or TCP/IP.

FEATURES

      • HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
      • Four 18G HDMI 2.0 video inputs support up to 4K60 444 resolution
      • Four 18G HDMI 2.0 video outputs support up to 4K60 444 resolution
      • Four outputs can be individually scaled for 4K→1080p
      • De-embedded audio to analogue L/R and Coaxial ports output
      • ARC audio return to the coaxial ports output only
      • Built-in Web GUI for TCP/IP control
      • Advanced EDID management supported
      • Four methods of control: Front panel, RS-232, IR remote and TCP/IP
      • Compact design for easy and flexible installation





TECHNICAL

HDMI Compliance

HDMI 2.0

HDCP Compliance

HDCP 2.2 and HDCP 1.4

Video Bandwidth

18 Gbps

Video Resolution

      ·         4K2K 50/60Hz 4:4:4

      ·         4K2K 50/60Hz 4:2:0

      ·         4K2K 30Hz 4:4:4

      ·         1080p, 1080i, 720p, 720i, 480p, 480i

      ·         All HDMI 3D TV formats

      ·         All PC resolutions including 1920 x 1200

      Output Scali

      4K to 1080p

      3D Support

      Yes

      Colour Space

      RGB, YCbCr4:4:4, YCbCr4:2:2, YCbCr 4:2:0

      Colour Depth

      8-bit, 10-bit, 12-bit [1080P, 4K30Hz, 4K60Hz (YCbCr 4:2:0)]

      HDMI Audio Formats

      8-bit [4K60Hz (YCbCr 4:4:4)]

      Coaxial Audio Formats

      PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master,Audio, DSD

      L/R Audio Formats

      PCM2.0, Dolby Digital / Plus, DTS 2.0/5.1,PCM2.0, Dolby Digital / Plus, DTS 2.0/5.1,PCM2.0CH

      HDR Support

      HDR10, HDR10+. Dolby Vision, HLG

      ESD Protection

      Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

      CONNECTIONS
      Input Ports

      4×HDMI Type A [19-pin female]

      Output Ports

          ·         4×HDMI Type A [19-pin female]

          ·         4×L/R audio out [3.5mm Stereo Mini-jack]

          ·         4×COAX audio out [RCA]

          Control ports

              ·         1x TCP/IP [RJ45]

              ·         1x RS-232[3-pin phoenix connector]

              ·         1x IR EXT [3.5mm Stereo Mini-jack]

              MECHANICAL
              Housing

              Metal Enclosure

              Colour

              Black

              Dimensions

              220mm (W)×105mm (D)×44mm (H)

              Weight
              		792g

              Power Supply

              Input : AC100~240V 50/60Hz

              Output: DC12V/2.5A (Locking connector)

              Power Consumption

              10W (max), 1.56W (Standby)

              Operating Temperature

              0°C ~ 40°C / 32°F ~ 104°F

              Storage Temperature

              -20°C ~ 60°C / -4°F ~ 140°F

              Relative Humidity
              		05- 90% RH (no condensation)

              Resolution / Cable Length

              4K60 -

              Feet / Meters

              4K30-

              Feet / Meters

              1080P60-

              Feet / Meters

              HDMI IN / OUT
              		10ft / 3M
              		30ft / 10M
              		42ft / 15M
