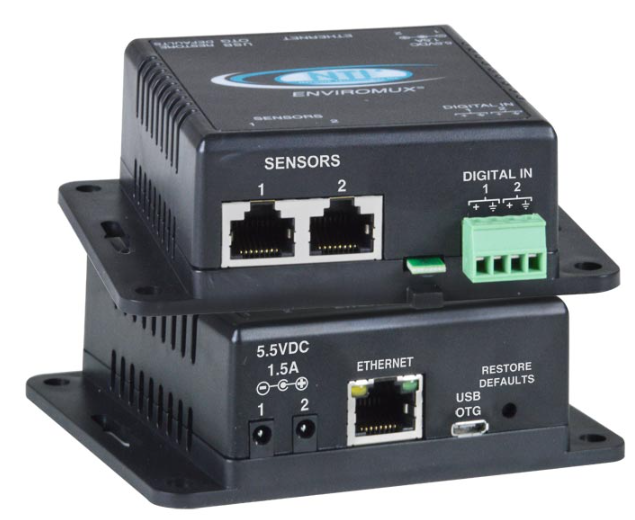

Micro Environment Monitoring System / Remote Temperature/Humidity Sensor over IP

Micro Environment Monitoring System / Remote Temperature/Humidity Sensor over IP

Model No : E-MICRO-TRH

Weight In KG :0.45359

Weight In LB :1.0



Request for Price
  • Description
  • Sepcification
  • Download
  • Buy

INTRODUCTION

      • Micro Environment Monitoring System (EMS) monitors critical environmental conditions, such as temperature, humidity, liquid water presence, power, intrusion, and smoke. When a sensor goes out of range of a configurable threshold, the system will notify you via email, web page, network management (SNMP), and/or SMS messages (via email-to-SMS).
      • The system functions independently or as an IP-connected remote sensor for the E-2D/5D/16D. It features an integrated temperature/humidity sensor, two RJ45 sensor ports for external temperature/humidity sensors, two dry contact inputs and optional built-in Power over Ethernet (PoE).
      • Sensors supported by a single E-MICRO:
      • 1 integrated temperature/humidity combination sensor
      • 2 RJ45 ports for external temperature/humidity sensors
      • 2 digital inputs sensitive to contact closure.
      • Dual DC power provides dual redundancy.
      • Available with optional built-in Power over Ethernet.
      • Sensors are hot pluggable.
      • Monitor (ping) up to 4 IP network devices – alerts are sent if devices are not responding.
      • Create multiple alerts for any installed sensor.
      • Sensor conditions can be configured to trigger alerts by themselves, and/or be used in combination with other alerts to trigger one Smart Alert.
      • Configure up to 32 alerts, and one Smart Alert.
      • Alerts are posted in message log, which is accessible through Web user interface.
      • Supports NTI's IP network video cameras for live view of any facility.
      • Integrates with various Open Source SNMP monitoring packages – Nagios.
      • The unit can be polled via SNMP.
      • Optional intuitive graphical management software (E-MNG-SH) provides an easy-to-use, unified interface for both monitoring and configuring up to 3,000 ENVIROMUX units and all connected sensors.
      • Optional Android App provides an easy-to-use interface for monitoring sensor statuses and acknowledging/dismissing sensor alerts from an unlimited number of E-MICRO units.
      • Security: HTTPS, TLS v1.2, AES 256-bit encryption, 16-character username/password authentication, user account restricted access rights.
      • Integrated mounting brackets for easy surface/wall mounting.
      • Optional DIN mounting available.
      • Use in data centers, co-lo sites, web hosting facilities, telecom switching sites, POP sites, server closets, or any unmanned area that needs to be monitored.
      • Use the E-MICRO-TRH(P) with a wireless router and Wi-Fi Range Extender to create a Wireless Environment Monitoring System.
      • Configure, monitor, and receive alerts without the use of a wired network connection.



TECHNICAL

RJ45 Sensor Ports
    • Two RJ45 modular jacks for connecting temperature sensors or combined temperature/humidity sensors.
    • Three levels of user-defined alerts – normal, warning, critical.

Dry Contact Closures

Two screw terminal pairs for connecting dry contact devices and the liquid detection sensor.

USB Port

One female Micro USB connector - reserved for future use.

Ethernet Port
    • One female RJ45 connector.
    • 10/100 Base-T Ethernet interface.

Protocols
    • HTTP/HTTPS, SNMP V1/V2c/V3, SMTP, TCP/IP, Syslog, SNTP, DHCP, TLS v1.2, AES 256-bit, 3DES, Blowfish, RSA, EDH-RSA, Arcfour.
    • Compatible with any SNMP management software.
    • The unit can be polled via SNMP.
    • Operates and configures via HTTP/HTTPS web page.
    • Supports Microsoft Edge, Internet Explorer 6.0 and higher, Firefox 1.5 and higher, Google Chrome, and Safari 1.3 and higher (for MAC).
    • Multiplatform support: Windows 7/8/10/11, Windows Server 2008/2012/2016/2019/2022, Solaris, Linux, FreeBSD, and MAC OS 10/11/12.
    • An IP address can be assigned to the E-MICRO automatically by a DHCP server.
    • Generates SNMP traps, email alerts, syslog messages, and SMS messages (via email-to-SMS).
    • Alerts are posted in event log, which is accessible through Web user interface.
    • Email alerts can be sent to 9 addresses.
    • Users can configure the schedule for when they will be alerted.
    • Supports HTTP REST API to poll sensor data with response in JSON format.

Integrated Temperature/Humidity Sensor

Applications from -4 to 167°F (-20 to 75°C) and 0 to 90% relative humidity.

Temperature accuracy

(in moving air – minimum airflow 8.2 ft/s (2.5 m/s)):

±1.44°F (±0.8°C) for -4 to 41°F (-20 to 5°C).

±0.72°F (±0.4°C) for 41 to 140°F (5 to 60°C).

±1.62°F (±0.9°C) for 140 to 167°F (60 to 75°C).

Resolution: 0.2°F (0.1°C).

Humidity accuracy (at 77°F/25°C)

0 to 10% RH: ±5%

10 to 20% RH: ±4%

20 to 80% RH: ±3%

80 to 90% RH: ±4%

Dimensions

WxDxH in (all options): 4x3.44x1.37 (102x87x35 mm).

Includes mounting holes to match rack hole spacing.

Power

E-MICRO-TRH:

    • Dual DC power provides dual redundancy.
    • If the first power source fails, the unit will automatically, without interruption, switch over to the second power source.
    • The unit draws power from the source with the highest DC voltage (nominal 5.5V).
    • If both sources have exactly the same voltage, it will draw in part from each of them.
    • 100 to 240 VAC at 50 or 60 Hz via AC adapter.
    • Includes one country-specific AC adapter. The second AC adapter is sold separately (PWR-SPLY-ELC).
    • Input voltage: 5.5VDC ±5%
    • Power consumption: 4W max.


E-MICRO-TRHP:

    • Built-in Power over Ethernet and dual DC power provides triple redundancy.
    • Power over Ethernet standards supported: IEEE 802.3af, 802.3at.
    • Proprietary schemes such as Cisco Discovery Protocol are not supported.
    • Similar legacy switches and routers will have to use PWR-SPLY-ELC.
    • If the first power source fails, the unit will automatically, without interruption, switch over to the second power source.
    • The unit draws power from the source with the highest DC voltage (nominal 5.5V).
    • If two or more sources have exactly the same voltage, it will draw in part from each of them.
    • 100 to 240 VAC at 50 or 60 Hz via AC adapter (not included).
    • Country-specific AC adapters sold separately (PWR-SPLY-ELC).
    • Input voltage: 5.5VDC ±5%
    • Power consumption: 4W max.
    • Use the PWR-48V-5-5V4A DC-DC power converter to install the E-MICRO in a 48V or 24V Telecom environment.

MTBF

E-MICRO-TRH: 628,394 hours.

E-MICRO-TRHP: 577,812 hours.

Environmental

Operating & Storage Temperature: -4 to 167°F (-20 to 75°C).

Operating & Storage Relative Humidity: 0 to 90% non-condensing RH.

Regulatory Approvals

CE, RoHS.

Warranty

 2 years
