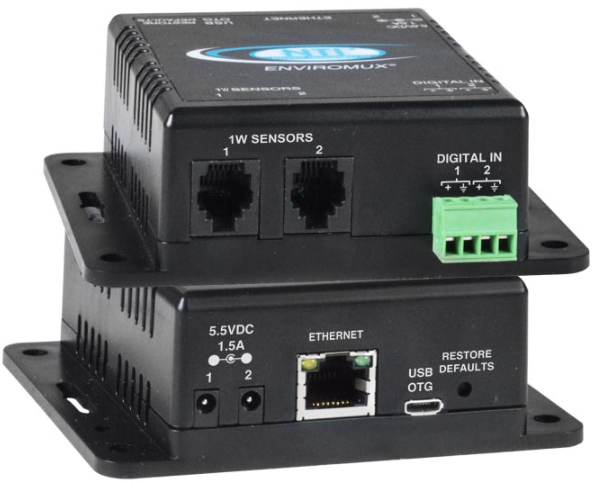

Low-Cost Environment Monitoring System – Supports up to 24 Temperature Sensors

Low-Cost Environment Monitoring System – Supports up to 24 Temperature Sensors

Model No : E-1W

Weight In KG :0.45359

Weight In LB :1.0



Request for Price
  • Description
  • Sepcification
  • Download
  • Buy

INTRODUCTION

      • Environment Monitoring System (EMS) with 1-Wire Sensor Interface monitors critical environmental conditions, such as temperature, humidity, liquid water presence, power, intrusion, and smoke. When a sensor goes out of range of a configurable threshold, the system will notify you via email, web page, network management (SNMP), and/or SMS messages (via email-to-SMS).
      • The IoT system supports 24 single reading 1-wire sensors in any combination – temperature, humidity, dew point, or digital inputs – and 2 separate digital inputs. It functions independently or as an IP-connected remote sensor for the E-2D/5D/16D.
      • Monitor and manage environmental and security conditions over IP.
      • Sensors supported:
      • 2 digital inputs sensitive to contact closure.
      • 2 RJ11 6P4C connectors for daisy-chaining 1-wire temperature/humidity/dew point or digital input expanders in any combination.
      • Up to 24 temperature sensors (or any single reading 1-wire sensors) can be connected between both RJ11 connectors.
      • Up to 8 temperature/humidity/dew point combination 1-wire sensors can be connected between both RJ11 connectors. Each temperature/humidity/dew point sensor is equivalent to 3 single reading sensors.
      • Up to 12 E-DI2-1W digital input expanders can be connected between both RJ11 connectors to allow a maximum of 24 additional digital inputs. Each E-DI2-1W is equivalent to 2 single reading sensors.
      • Maximum cable length supported on each connector is up to 600ft (183 m) depending on the configuration and number of connected sensors.
      • Use RJ11 splitters (RJ11-3JCK) to daisy-chain 1-wire sensors (sold separately).
      • Sensors are hot pluggable.
      • The sensors will automatically be detected on power up or a Detect Devices button on the summary page can be selected when logged into the unit.
      • Monitors (ping) up to 4 IP network devices - alerts are sent if devices are not responding.
      • Sensor conditions can be configured to trigger alerts by themselves, and/or be used in combination with other alerts to trigger one Smart Alert.
      • Create multiple alerts for any installed sensor.
      • Sensor conditions can be configured to trigger alerts by themselves, and/or be used in combination with other alerts to trigger one Smart Alert.
      • Configure up to 32 alerts, and one Smart Alert.
      • Supports 4 IP network video cameras for live view of any facility.
      • Dual redundant power supplies for connection to two separate power sources.
      • The second power supply is sold separately.
      • Available with optional Power over Ethernet (POE).
      • Integrates with various Open Source SNMP monitoring packages – Nagios
      • The unit can be polled via SNMP.
      • Optional intuitive graphical management software (E-MNG-SH) provides an easy-to-use, unified interface for both monitoring and configuring up to 3,000 ENVIROMUX units and all connected sensors.
      • Security: HTTPS, SSLv3, AES 256-bit encryption, 16-character username/password authentication, user account restricted access rights.
      • Integrated mounting brackets for easy surface/wall mounting.
      • Optional DIN mounting available.
      • Ideal for a wide range of applications including IT infrastructure monitoring, cold storage/freezer monitoring, or any unmanned area that needs to be monitored.
      • Use the E-1W(P) with a wireless router and Wi-Fi Range Extender to create a Wireless Environment Monitoring System.
      • Configure, monitor, and receive alerts without the use of a wired network connection.





TECHNICAL

RJ11 Sensor Ports
    • Two RJ11 6P4C jacks for daisy-chaining 1-wire temperature/humidity/dew point, thermocouple, or digital input expanders in any combination.
    • Up to 24 temperature sensors (or any single reading 1-wire sensors) can be connected between both RJ11 connectors.
    • Up to 8 temperature/humidity/dew point combination 1-wire sensors can be split between both RJ11 connectors. Each temperature/humidity/dew point sensor is equivalent to 3 single reading sensors
    • Up to 12 digital input expanders can be split between both RJ11 connectors to allow a maximum of 24 additional digital inputs. Each digital input expander is equivalent to 2 single reading sensors
    • Maximum cable length supported on each connector is up to 600ft (183 m) depending on the configuration and number of connected sensors.
    • This maximum includes the cable length of each sensor.
    • RJ11 splitters or t-tap boards (RJ11-3JCK) for daisy-chaining sensors are sold separately.
    • Sensors can be extended up to 7 feet from an RJ11-3JCK

Dry Contact Closures

Two screw terminal pairs for connecting dry contact devices and liquid detection sensors.

USB Port

One female Micro USB connector - reserved for future use.

Ethernet Port
    • One female RJ45 connector.
    • 10/100 Base-T Ethernet interface.

Protocols
    • HTTP/HTTPS, SNMP V1/V2c/V3, SMTP, TCP/IP, Syslog, SNTP, DHCP, TLS v1.2, AES & DES 256-bit, 3DES, Blowfish, RSA, EDH-RSA, Arcfour
    • Compatible with any SNMP management software.
    • The unit can be polled via SNMP.
    • Operates and configures via HTTP/HTTPS web page.
    • Supports Microsoft Edge, Internet Explorer 6.0 and higher, Firefox 1.5 and higher, Google Chrome, and Safari 1.3 and higher (for MAC).
    • Multiplatform support: Windows 7/8/10, Windows Server 2008/2012/2016/2019, Solaris, Linux, FreeBSD, and MAC OS 10/11.
    • An IP address can be assigned to the E-1W automatically by a DHCP server.
    • Generates SNMP traps, email alerts, syslog messages, and SMS messages (via email-to-SMS).
    • Alerts are posted in event log, which is accessible through Web user interface.
    • Email alerts can be sent to 9 addresses.
    • Users can configure the schedule for when they will be alerted.
    • Supports HTTP REST API to poll sensor data with response in JSON format.

Dimensions

WxDxH in: 4x3.65x1.37 (102x93x35 mm).

Power

E-1W:

    • Dual DC power provides dual redundancy.
    • If the first power source fails, the unit will automatically, without interruption, switch over to the second power source.
    • The unit draws power from the source with the highest DC voltage (nominal 5.5V).
    • If both sources have exactly the same voltage, it will draw in part from each of them.
    • 100 to 240 VAC at 50 or 60 Hz via AC adapter.
    • Includes one country-specific AC adapter. The second AC adapter is sold separately (PWR-SPLY-ELC).
    • Input voltage: 5.5VDC ±5%
    • Power consumption: 5W max.


E-1WP:

    • Built-in Power over Ethernet and dual DC power provides triple redundancy.
    • Power over Ethernet standards supported: IEEE 802.3af, 802.3at.
    • Proprietary schemes such as Cisco Discovery Protocol are not supported.
    • Similar legacy switches and routers will have to use PWR-SPLY-ELC.
    • If the first power source fails, the unit will automatically, without interruption, switch over to the second power source.
    • The unit draws power from the source with the highest DC voltage (nominal 5.5V).
    • If two or more sources have exactly the same voltage, it will draw in part from each of them.
    • 100 to 240 VAC at 50 or 60 Hz via AC adapter (not included).
    • Country-specific AC adapters sold separately (PWR-SPLY-ELC).
    • Input voltage: 5.5VDC ±5%
    • Power consumption: 5W max.
    • Use the PWR-48V-5-5V4A DC-DC power converter to install the E-1W in a 48V or 24V Telecom environment.

MTBF

E-1W: 703,871 hours

Environmental

Operating & Storage Temperature: -4 to 167°F (-20 to 75°C).

Operating & Storage Relative Humidity: 5 to 90% non-condensing RH.

Regulatory Approvals

CE, RoHS.

TAA compliant.

Warranty

2 years



E-WIFI-RE Environment Monitoring System WiFi Range Extender
E-RJ11-25 RJ11 6P4C Straight-Wired Patch Cords, 25ft
RJ11-3JCK RJ11 Splitter
E-RJ11-7 RJ11 6P4C Straight-Wired Patch Cords, 7ft
E-RJ11-50 RJ11 6P4C Straight-Wired Patch Cords, 50ft
E-DI2-1W Digital Input Expander
E-2W-PLNM-3 Plenum 22 AWG 2-Wire Sensor Cable, 3 ft
E-2W-PLNM-6 Plenum 22 AWG 2-Wire Sensor Cable, 6 ft
E-2W-PLNM-10 Plenum 22 AWG 2-Wire Sensor Cable, 10 ft
E-2W-PLNM-25 Plenum 22 AWG 2-Wire Sensor Cable, 25 ft
E-2W-PLNM-50 Plenum 22 AWG 2-Wire Sensor Cable, 50 ft
E-2W-PLNM-100 Plenum 22 AWG 2-Wire Sensor Cable, 100 ft
E-2W-PLNM-300 Plenum 22 AWG 2-Wire Sensor Cable, 300 ft
E-2W-PLNM-500 Plenum 22 AWG 2-Wire Sensor Cable, 500 ft
E-2W-PLNM-700 Plenum 22 AWG 2-Wire Sensor Cable, 700 ft
E-2W-PLNM-1000 Plenum 22 AWG 2-Wire Sensor Cable, 1000 ft
E-2WO-3 Outdoor 22 AWG 2-Wire Sensor Cable, 3 ft
E-2WO-6 Outdoor 22 AWG 2-Wire Sensor Cable, 6 ft
E-2WO-10 Outdoor 22 AWG 2-Wire Sensor Cable, 10 ft
E-2WO-25 Outdoor 22 AWG 2-Wire Sensor Cable, 25 ft
E-2WO-50 Outdoor 22 AWG 2-Wire Sensor Cable, 50 ft
E-2WO-100 Outdoor 22 AWG 2-Wire Sensor Cable, 100 ft
E-2WO-300 Outdoor 22 AWG 2-Wire Sensor Cable, 300 ft
E-2WO-500 Outdoor 22 AWG 2-Wire Sensor Cable, 500 ft
E-2WO-700 Outdoor 22 AWG 2-Wire Sensor Cable, 700 ft
E-2WO-1000 Outdoor 22 AWG 2-Wire Sensor Cable, 1000 ft
E-CLP10-LD Self-Adhesive Clips for Liquid/Chemical Sensor Rope, 10-pack
E-CLP100-LD Self-Adhesive Clips for Liquid/Chemical Sensor Rope, 100-pack
PWR-SPLY-ELC 5.5V, 1.5A Power Supply. Compatible with E-MICRO-TRH(P)
PWR-48V-5-5V4A External 48VDC to +5.5VDC, 4A Power Converter
E-MNG-SH Manage 3000 E-2D/5D/16D units
E-MNG-SHNR Manage 3000 E-2D/5D/16D/MICRO/1W units. Uses non-renewing permanent license – does NOT require internet connection.
E-T1W-1M 1-Wire Indoor/Outdoor Temperature Sensor, -40 to 185°F, IP67-Rated, 1 meter
E-T1W-7 1-Wire Indoor/Outdoor Temperature Sensor, -40 to 185°F, IP67-Rated, 7 feet
E-T1WGB-1M 1-Wire Temperature Sensor in Glycol-Filled Vial, -40 to 158°F, 1 meter
E-T1WGB-7 1-Wire Temperature Sensor in Glycol-Filled Vial, -40 to 158°F, 7 feet
E-FW-1 Flex Wire for Connecting E-T1WGB-1M to E-1W
E-TH1W-7 1-Wire Temperature/Humidity/Dew Point Sensor, -40 to 140°F
E-LD-LCx-y Low-Cost Liquid Detection Sensor, Rope-Style (X- 1 foot to 600 foot) (Y- 5 foot to 100 foot)
E-RTDT1W-1562 100 Ohm Platinum RTD 1-Wire Transmitter, -328 to 1562°F
E-RTDS-MP482 Mini Probe 100 Ohm RTD Sensor, -319 to 482°F, 4-Wire
E-LDx-y Liquid Detection Sensor, Plenum Rope-Style (X- 1 foot to 1000 foor) (Y- 5 foot to 100 foot)
E-CDx-y Chemical Detection Sensor (X- 1 foot to 100 foot) (Y- 5 foot to 100 foot)
E-LD-SPDT-P Spot Liquid Detector, Point Leak Detection Sensor
E-SLDO-14-240VTR Compact-Size Spot Liquid Detector, Point Leak Detection Sensor, 240/208/120 to 24 VAC power transformer and country-specific line cord
E-SLDO-AP Spot Liquid Detector with Built-In Visual & Audible Alarm
E-SLDO-IP68-P IP68 Submersible Spot Liquid Detector
E-UCLD-1 Under Carpet Leak Detector, 1 ft
E-UCLD-10 Under Carpet Leak Detector, 10 ft
E-UCLD-25 Under Carpet Leak Detector, 25 ft
E-UCLD-50 Under Carpet Leak Detector, 50 ft
E-UCLD-100 Under Carpet Leak Detector, 100 ft
E-UCLD-200 Under Carpet Leak Detector, 200 ft
E-UCLD-400 Under Carpet Leak Detector, 400 ft
E-UCLD-600 Under Carpet Leak Detector, 600 ft
E-UCLD-1000 Under Carpet Leak Detector, 1000 ft
E-TLD-P10 Tape-Style Liquid Detector, 10 ft
E-TLD-P25 Tape-Style Liquid Detector, 25 ft
E-TLD-P50 Tape-Style Liquid Detector, 50 ft
E-TLD-P100 Tape-Style Liquid Detector, 100 ft
E-SDS-PA Smoke Detector with Built-In Fixed-Temperature 135°F (57°C) Heat Sensor – UL Approved
E-SDS-TAA-PV2 Smoke Detector with Built-In Fixed-Temperature 135°F (57°C) Heat Sensor – UL Approved, TAA Compliant
E-GD-MBP-P Gas Detector – Methane, Butane, Propane
E-AFM Air Flow Sensor
E-M-DCS3 Door Contact Sensor
E-M-DCS3-TAA Door Contact Sensor, TAA Compliant
E-DCS-PS2 Plunger-Style Door Contact Sensor
E-DCSR-V2 Rugged Door Contact Sensor
E-DCSR-U Rugged Door Contact Sensor with Universal-Style Magnet
E-VSSBD Vibration Sensor – Registers Movement & Shocks
E-GBS-P Glass Break Detection Sensor, Powered
E-IMD-LCV2P Low-Cost Infrared Motion Sensor, Powered
E-IMD-CMP Ceiling Mount Infrared Motion Sensor, Powered
E-TDS Tamper Switch
E-EBS Emergency/Panic Button
E-IPCAM-WHNPT-V4 High-Definition Wireless/Wired Day/Night Pan/Tilt IP Camera
E-IPCAM-HNPO-P Ultra-HD Wired Day/Night Outdoor Bullet IP Camera with Power over Ethernet (POE)
E-ACVDRLY-515 AC Voltage Detector with Relay, NEMA 5-15 plug
E-ACVDRLY-C14 AC Voltage Detector with Relay, IEC C14 socket
E-1W Environment Monitoring System with 1-Wire Sensor Interface. One power supply included.
E-1WP Environment Monitoring System with 1-Wire Sensor Interface, Power over Ethernet (PoE). Power supply NOT included.
E-1W-D Environment Monitoring System with 1-Wire Sensor Interface. DIN Mounted. One power supply included.
E-1WP-D Environment Monitoring System with 1-Wire Sensor Interface, POE, DIN Mounted. Power supply NOT included.
