OVERVIEW

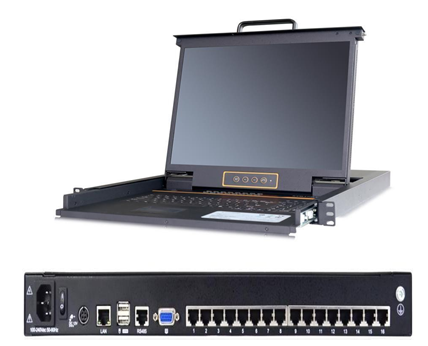

Featuring an integrated LCD monitor, keyboard, and touchpad in a 1U rack-mountable housing, the PA-HT1908 LCD KVM over IP Switch is a control unit that allows secure access to 8 computers from a single KVM console.

The PA-HT1908 features IP-based connectivity that allows local and remote operators to monitor and access the computers. With TCP/IP communications protocol, the PA-HT1908 can be accessed from any computer on the LAN, WAN or Internet.

It’s easy to set up the PA-HT1908, just plug the cable into the appropriate port, no software needed, no complicated installation procedures, and no compatibility issues. Connect computers with compact RJ-45 connectors and Cat 6 cable, transmitting distance is up to 100m.

FEATURES

• Integrated KVM Console with 19’’ rackmount lcd monitor, keyboard/touchpad and 8 port kvm in a 1U height console
• Standard HDMI connection-Connect to a server or computer via standard HDMI connectors
• LCD module can be opened up to 108 degrees to provide a comfortable viewing angle
• Support computers with USB keyboard and mouse

MANAGEMENT

• Convenient computer switching via front panel LEDs, keyboard hotkey combination or on-screen-display (OSD)
• Auto scan feature for monitoring user-selected computer
• Broadcast mode--operations simultaneously performed on all selected computers
• Hot pluggable --add or remove computers without having to power down the switch
• Quickly select your computer by naming the server or inputting SN number of the server
• On-Screen Display (OSD) adjustments-Adjust the on-screen image, including: auto adjust, exit, power on/off, brightness, menu, and a power indicator

HIGH RESOLUTION

• 19” TFT LCD monitor with highlight, high definition and high resolution
• Resolution is up to 1280x 1024 60Hz

SECURITY

• Two level password security--only authorized users view and control computers
• Supports one administrator and four user accounts with a separate profile for each

HIGH PERFORMANCE TOUCHPAD

• Touchpad with scroll wheel - Eliminates the need for a separate, external mouse

KEYBOARD

• Multi-language support--English, Russian, German, French, Spanish, and Korean etc.
• Full size 99 keys keyboard with integrated number pad

WIDE COMPATIBILITY

• Multiplatform Support-Compatible with Windows, Sun, Unix and Linux
• Supports servers form Lenovo, HUA WEI, HP, IBM, Cisco and Dell, etc
