TECHNICAL

Inputs	Female HDMI input connectors Compatible with computers and UHD video sources (satellite receivers, Blu-Ray players, etc) with HDMI video. Supports HDCP 2.2/1.4
Outputs	Female HDMI output connectors RCA jacks for SPDIF digital audio. HDMI-embedded audio switching (four-channel stereo mixing). Supported resolutions 4Kx2K (4096x2160 and 3840x2160) @24Hz/30Hz/60Hz YUV 4:4:4 480p @60Hz, 576p@50Hz, 720p@60Hz, 1080p @24/50/60Hz Supports HDCP 2.2/1.4 Video bandwidth: 600MHz (18 Gbps)
Power	Input: 100 to 240 VAC at 50 or 60 Hz via AC adapter (AC adapter included.) Output: 12VDC, 3.0A Power consumption: 19W
Max Distance	Extending unencrypted video signal: 6,561 feet (2000 meters) over 9µm singlemode duplex LC fiber optic cable. Extending HDCP-encrypted video signal: 1,640 feet (500 meters) over 9µm singlemode duplex LC fiber optic cable.
Cables	Use HD-xx-MM HDMI cables to connect an HDMI source or display. Supports cable lengths to 50 feet for 4Kx2K resolutions at 60Hz Cables not included.
Dimensions	WxDxH (in): 17.32x8.66x1.75 (440x220x44 mm).
Environmental	Operating temperature: -4 to 140°F (-20 to 60°C). Storage temperature: -40 to 158°F (-40 to 70°C.)
Regulatory Approval	CE, FCC, RoHS
Warranty	2 Years

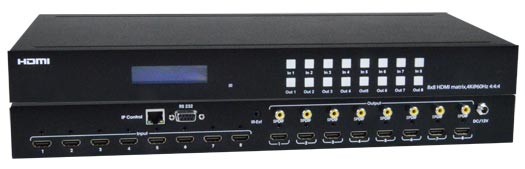

Package Includes	One 4K HDMI Video Matrix Switch One power adapter One IR remote One IR extension cable Mounting kit
Compatible NTI Products	Combine NTI's extenders, switches, splitters and cables for complex applications 4K HDMI Extender via One CATx (ST-C64K-300) Each output on the switch must be set to 3840x2160 @ 30Hz. Video Wall Processor (SPLITMUX-4X4-HDVWC)
