INTRODUCTION

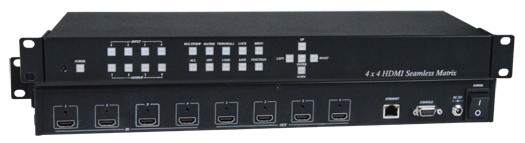

• The 4x4 HDMI Quad Screen Multiviewer is a multi-purpose high-speed video processing system that can be configured for three different output modes. In Multiview Mode, it is capable of displaying the four video sources in quad, PiP, full screen, or custom display modes, with all four monitors simultaneously displaying the same image. In Matrix Mode, digital HDMI video and audio signals are routed from four HDMI video sources to four displays. In Video Wall Mode, video from a single source is displayed across all four monitors.
• Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200.
• Each input can be independently connected to any or all outputs.
• Quad, Picture in Picture, Full Screen, and Custom display modes.
• Custom Display Mode: the size, position and selection of any or all windows are customizable.
• 2- and 3-source viewing is possible with this method.
• Fluid, real-time video performance with 60 frames per second (fps) in all four quadrants.
• When in Multiview mode, all four monitors simultaneously display the same image.
• Supports 2x2 video wall configuration with displays in landscape (horizontal) orientation.
• HDCP 1.4 compliant.

HDMI features supported:

• HDMI 1.3
• 10-, 12-, and 16-bit xvYCC, RGB, and YCbCr.
• Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS, LPCM 7.1, and LPCM 2.
• Bandwidth up to 340 MHz (8 Gbps)
• Lip Sync
• Configure and control the multiviewer through front panel buttons, Ethernet, IR remote control, or RS232.
• Switch audio independently of video from connected HDMI sources (e.g. source 1 and source 2 video are active while only source 3 audio is active).
• Any DVI source can be connected by using the DVI-HD-xx-MM cable (not included).
• Built-in EDID table
• Option to copy EDID from any sink to one or all sources.
