INTRODUCTION

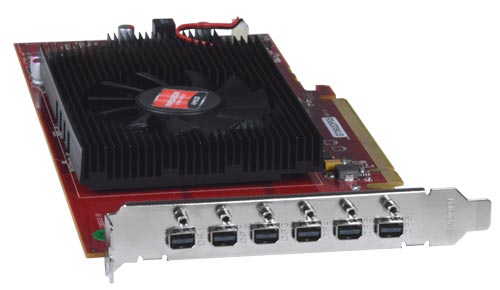

• The PCIE3-4K18GB-6VW 4K DisplayPort/HDMI PCIe Graphics Card drives six monitors from a single slot on a PC with resolutions up to Ultra-HD 4Kx2K 60Hz 4:4:4 per output. It enables the user to create video walls up to 3x2. Additionally, it can be used as a video splitter.
• Drive six displays from one single-slot PCIe 3.0 x16 graphics card.
• Six active mini DisplayPort outputs provide maximum AMD Eyefinity technology support.
• Independent resolutions, refresh rates, color controls, and video overlays.
• Each monitor can display a different program/browser – just drag and drop to the monitors.
• Supports resolutions up to Ultra-HD 4Kx2K 4:4:4 per output.
• Max resolution using DisplayPort monitors: 3840x2160@60Hz
• Max resolution using HDMI monitors: 3840x2160 and 4096x2160 @30Hz
• Create video wall configurations with displays in landscape or portrait orientations.

Landscape (horizontal) orientation:

AMD Eyefinity: 1x1, 1x2, 1x3,1x5, 2x1, 2x2, 3x1, 3x2, 4x1, 5x1

Microsoft Windows: 1x1, 1x2, 1x3, 1x4, 1x5, 1x6, 2x1, 2x2, 2x3, 3x1, 3x2, 4x1, 5x1, 6x1

Portrait (vertical) orientation:

AMD Eyefinity: 1x1, 1x2, 1x3, 1x5, 2x1, 2x2, 3x1, 5x1

Microsoft Windows: 1x1, 1x2, 1x3, 1x4, 1x5, 1x6, 2x1, 2x2, 2x3, 3x1, 3x2, 4x1, 5x1, 6x1

• Versatile bezel compensation ability accommodates any screen frame width, and allows for accurate display of the image.
• Clone content to show the same information on all displays.
• 4GB of GDDR5 memory provides smooth video playback and graphics performance.
• Compliant with DisplayPort v1.2 specifications.
• HDCP compliant.
• Any HDMI display can be connected by using the DPMM-HD4K18GBF adapter cable (not included).
• Ideal for a wide range of digital signage applications, including: retail stores, restaurants, corporate lobbies, entertainment venues, trade shows, airports, and more.
