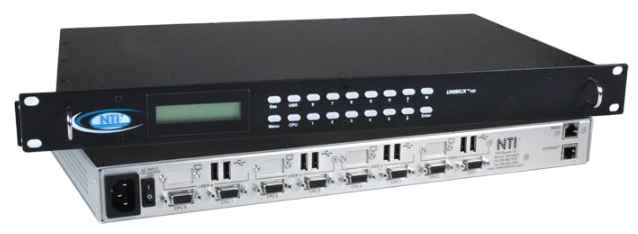

High Density VGA USB KVM Matrix Switch

High Density VGA USB KVM Matrix Switch

Model No : UNIMUX-4X8-UHD

Weight In KG :3.08443

Weight In LB :6.8



Request for Price
  • Description
  • Sepcification
  • Download
  • Buy

INTRODUCTION

      • The High Density VGA USB KVM Matrix Switch allows up to four users to individually command or simultaneously share up to 32 USB computers. Access USB computers (PC, SUN, and MAC) using USB keyboards and mice, and VGA multiscan monitors.The High Density Switch saves rack space.
      • The 4x8 switches are 1RU in height.
      • The 4x16 and 4x32 switches are 2RU in height.
      • Features NTI's patented true autoboot USB switching – all attached computers can be booted simultaneously.
      • Compatible with USB computers (PC, SUN, MAC).
      • Cascade UNIMUX switches off a single master switch to control up to 256 computers as if from one switch.
      • High quality steel construction.
      • Crisp and clear 1920x1200 video resolution.
      • Equipped with OSD, Liquid Crystal Display, RS232, and Ethernet.
      • Dedicated microprocessors prevent computers from locking up, ensuring reliable control.
      • Cabling runs are simplified with NTI's high density KVM switch cables.
      • Flash upgradeable
      • Optional support for a USB 2.0 (low/full speed) devices, in addition to keyboards and mice, such as USB touch screen monitors, interactive whiteboards, or CAC card readers.
      • Additional USB device must be the same for each user.

TECHNICAL

Hosts
      • Female 15-pin HD connectors.
      • Supports USB computers with VGA video.
      • Multiplatform support: Windows 7/8/10, Windows Server 2008/2012/2016/2019, Solaris, Linux, FreeBSD, and MAC OS 10/11.
      • Any legacy PS/2 or SUN computer can be connected by using a USB-PS2-R or USB-SUN-R adapter.

Monitor
      • Crisp and clear 1920x1200 resolution.
      • Female 15-pin HD connectors.
      • A multiscan VGA monitor is required to display the different video outputs from different platforms.
      • Bandwidth is 150 MHz.

 Power

110 or 220 VAC at 50 or 60 Hz via IEC connector.

Power Consumption

Model
Watts
4x8
20
4x16
25
4x32
40

Cables
      • Interface cables between your computers and the switch are required for proper operation. (Cables not included)
      • Use HDUSBVEXT-xx-MM to connect computers to the switch.
      • Use USB male A to female A cables with HDUSBVEXT-xx-MM to extend USB beyond 15 feet.

Devices
      • Female USB Type A connectors.
      • Compatible with most USB keyboards and mice, including Microsoft USB Intellimouse®, Logitech Cordless Elite Duo keyboard/mouse, Gyration keyboard/mouse, Crystal Vision keyboard with touchpad, and IKEY combo keyboard/touchpad.
      • Keyboard and mouse are hot-pluggable.
      • Available with optional female USB Type A connectors for additional USB 2.0 (low/full speed) devices - USB touch screen monitors, CAC card readers, interactive whiteboards, or barcode scanners.
      • USB maximum data rate: 12 Mbps.
      • Supported touch screen monitors: Microtouch 3M, ELO 1529L 3000 Series, Smart Podium ID422w, Hope Industrial HIS-RL17, NEC MultiSync E222W, Industrial Electronic Devices Inc IWS-240t-G3, Zytronics CML-170, Pulse IR TSV4001/DT40, HP Compaq, and TouchWindow TWAP-ETPM-S17-1000.
      • Supported interactive whiteboards: SMART Board™ SB640
      • Supported card readers: Athena, Cherry, Gemalto, Generic USB, Dell smart card/keyboard combo, and SCM Microsystems.

Regulatory Approvals

CE, RoHS

TAA compliant

Warranty

2 years

Compatible NTI Products

Combine NTI emulators and switches for complex applications.

VGA EDID Emulator (VGA-EDID-EMLTR)

MTBF

NTI Part #
Hours
UNIMUX-4X8-UHD
84,010
UNIMUX-4X8-UHDU
79,049
UNIMUX-4X16-UHD
69,898
UNIMUX-4X16-UHDU
62,110
UNIMUX-4X32-UHD
59,913


VGA-EDID-EMLTR VGA EDID Emulator
HDUSBVEXT-3-MM 3 ft
HDUSBVEXT-6-MM 6 ft
HDUSBVEXT-15-MM 15 ft
UNIMUX-4X8-UHD 1RU 4X8 High Density VGA USB KVM Matrix Switch
UNIMUX-4X16-UHD 2RU 4X16 High Density VGA USB KVM Matrix Switch
UNIMUX-4X32-UHD 2RU 4X32 High Density VGA USB KVM Matrix Switch
UNIMUX-4X8-UHDU 1RU 4X8 High Density VGA USB KVM Matrix Switches with Additional USB Connector
UNIMUX-4X16-UHDU 2RU 4X16 High Density VGA USB KVM Matrix Switches with Additional USB Connector
UNIMUX-4X8-UHD-NV 1RU 4X8 High Density USB Matrix Switches USB ONLY, NO VGA VIDEO
UNIMUX-4X16-UHD-NV 2RU 4X16 High Density USB Matrix Switches USB ONLY, NO VGA VIDEO
